RODE RODECASTER VIDEO CORE

Name: Rode RODECASTER VIDEO CORE : Console de production audio/vidéo | Digi
Brand: Rode
SKU: R100471
Price: 674.10 EUR
Availability: BackOrder

All-in-one video and audio production console

Rode

674,10 € TTC 561,75 € HTSeen a lower price?

Integrated audio and video production for creators
Three Full HD HDMI inputs for multiple sources
Extended software control via RØDECaster app
Audio mixing with Revolution™ studio-quality preamps
Compatible with RØDECaster Pro II and Duo for increased flexibility

Central stock Supplier stock Strasbourg stock

Ships in 3-4 business days · Livraison Saturday 29 August France

Compare

Add to wishlist

0 People watching this product now!

Description
Additional information

Description

RODE RODECASTER VIDEO CORE is an all-in-one video and audio production console designed for content creators seeking a compact and powerful solution.

It offers seamless integration of video and audio production with a professional audio mixer, advanced video switching capabilities and recording. Thanks to its three HDMI inputs and USB-C port, you can easily connect various devices for maximum flexibility.

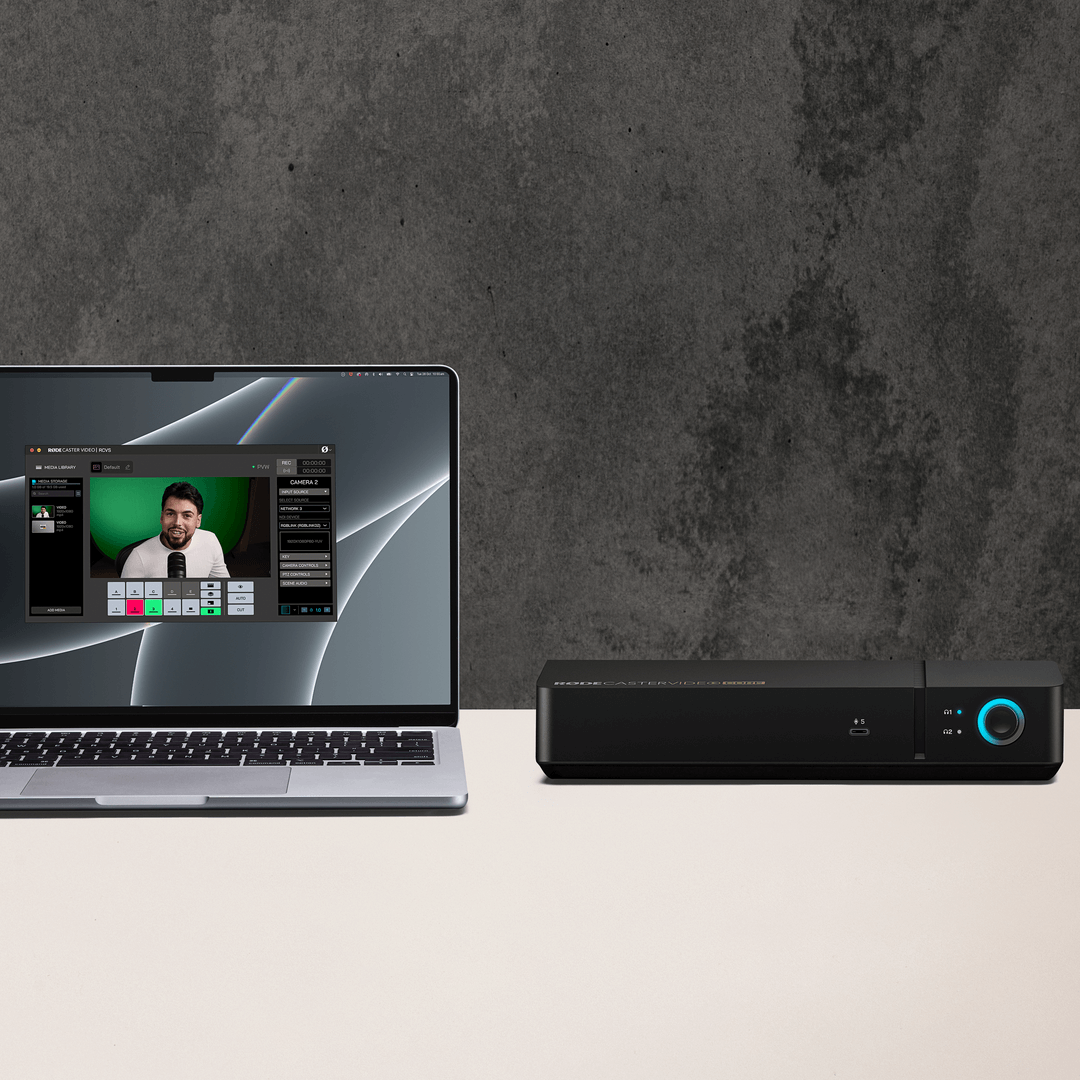

Ideal for podcasters, live streamers and studio productions, this console allows you to manage up to four simultaneous video streams while guaranteeing high-quality audio mixing. With the RØDECaster app, customize your scenes and control audio levels for flawless results.

Connect XLR equipment and benefit from low-noise preamps for pure sound. The RØDECaster Video Core integrates perfectly with other RØDE equipment to expand your production possibilities.

Additional information

Weight	0,705 kg
Video Input Feeds	4 Simultaneous
HDMI Inputs	3 Type-A (HDMI1.4b)
USB (UVC) Inputs	1 Multi-function USB-C for UVC Video
HDMI Outputs	1 Configurable – Preview, Program, Multiview
Video Input Frame Rates	1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30
Video Output Frame Rates	1920x1080p: 24, 25, 30, 50, 60
Video Streaming Standards	1920x1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Engine Colour Space / Bit Depth	4:4:4 RGB / 8-bit
HDMI Input Colour Space / Bit Depth	4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
USB Input Colour Space	4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth	4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space / Bit Depth	4:2:2 YUV / 8-bit
Format and Frame Rate Converters	On all HDMI and USB inputs
Total Number of Layers	9 simultaneous in Preview and Program
Downstream Keyers	2 (Overlays and Logo)
Chroma Keyers (Green and Blue)	2 (Green, Blue, Luma)
Media Players	2 simultaneous
Transitions	SMPTE wipes, dip and fade
True Preview	Display complete scenes and overlays simultaneously in preview and program
Generated Borders	All scenes
Multiview	Program and preview Live inputs, scene and media thumbnails Audio mixer and channel status Recording, network and storage status Run time, date and time information
Media Player	24GB on-board storage Videos: MP4 Images: PNG, JPG Audio: WAV
Analog Audio Inputs	2 combo jacks (microphone, line or instrument) with Revolution Preamps™
Digital Audio Inputs	USB 1: 2-in/2-out or multichannel (20-in) output USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus USB 2: 2-in/2-out with MFi support USB 4:compatible with RØDE USB microphones and RØDECaster Pro II and Duo
Analog Audio Outputs	2 headphone outputs (1/4-inch)
Audio Processing	APHEX® VoxLab™ Processing: per channel Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural Exciter™, Big Bottom™
Preamps	Frequency range: 20Hz – 20kHzInput gain: up to 76dB Input Equivalent Input Noise:-131.5dBV (A-weighted)
Streaming Sample Rate / Bit Depth	48kHz / 32-bit
Recording Sample Rate / Bit Depth	48kHz / 24-bit
Audio Mixer	16 possible audio sources (9 stereo channels simultaneously): combo 1 and 2 (can be combined for stereo), video clips, sounds, HDMI 1, 2 and 3 (each can be split for two mono), 3 USB audio interfaces (computers), 1 hosting USB audio device (USB microphone), 4 network 11 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, USB 1 Chat, USB 1, USB 2, USB 4, Bluetooth, HDMI A, Network. Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs.
Direct Streaming	Real Time Messaging Protocol (RTMP/RTMP) over Ethernet
Supported Platforms	Youtube Live Twitch Live Facebook Live Twitter/X Live Custom server
Network	Ethernet (10/100/1000 Base-T) for streaming, configuration, remote control with computer and over-the air updates
RØDE Central Companion Software	Scene builder: advanced construction of scenes and remote control of device Auto-switching: configuration of automatic switching based on audio input Audio mixer: advanced configuration and control of audio sources, processing and routing Stream profiles: configuration for streaming settings and profiles Device configuration: advanced settings and customisations
Storage Media	External USB mass storage device (exFAT format) for recordings
Video Recording	Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
Isolated (ISO) Video Recording	4 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
Audio Recording	Stereo mix WAV audio file
Multitrack Audio Recording	9 independent stereo WAV audio files
Compatible Operating Systems	MacOS 11 or laterWindows 10 Version 1803 or later,Windows 11
NDI Protocols	Single TCP, Multicast
NDI Formats	Hx2, Hx3
NDI Video Codecs	H.264, HEVC/H.265, 4:2:0, 8-bit
NDI Audio Codecs	AAC-LC, L-PCM Stereo 2.0 at 48kHz
NDI Interfaces	Wired Ethernet
Power Supply Requirements	USB-C PD 45W, 20V 2.25A
Weight (grams)	705
Dimensions (millimetres)	Length: 239 Width: 125 Height: 45.5
Couleur	Black
